OEM & Ordering Information
- Product Code: BP120C / BP120C PRO
- OEM Support: Worldwide plug compatibility and AC output standards, logo printing, color customization
- Sample: Available for evaluation upon request (paid sample)
- Payment: T/T, L/C, PayPal (for small orders)
- Supply Ability: 5000 units per month
The BP120C and BP120C Pro combine 1200W rated output with a 1008Wh LiFePO4 battery in a portable power platform designed for camping, vehicle-based outdoor use and backup power.Both models feature pure sine wave AC output, fast AC charging, MPPT solar charging and multiple USB, DC and AC outputs. For applications requiring longer runtime, the BP120C Pro adds an expansion power port for connecting an extra battery.
1200W Power for Camping and Vehicle-Based Use
With 1200W rated AC output and 2400W surge power, the BP120C platform is designed to support a range of portable electrical devices for camping, road trips, mobile work and temporary backup power.
Its 1008Wh battery capacity places it in the 1000Wh portable power station class, providing a practical balance between runtime, output capability and portability.
LiFePO4 Battery for Long-Term Portable Power
BP120C and BP120C Pro use LiFePO4 battery cells and are rated for more than 2,500 cycles to 80% of original capacity.
The cylindrical-cell configuration is suited to applications where high-power discharge capability, durability and stable performance are important, including outdoor camping and vehicle-based environments.
Fast AC and Solar Charging
Recharge the BP120C through AC power, solar panels or a vehicle power source depending on the application.
The system supports up to 800W AC input and up to 400W solar input through an MPPT controller. AC charging takes approximately 1.5 hours, while a 400W solar input can recharge the unit in approximately 2.5 hours under suitable conditions.
AC and solar input can also be combined for up to 1000W charging, reducing recharge time to approximately 1.3 hours.
Integrated MPPT Charging Architecture
The BP120C platform integrates the MPPT charging circuit into the inverter main board, creating a more compact internal architecture and helping reduce production complexity and overall system weight.
This design differs from the BP120B platform, which uses a separate MPPT charging board.
UPS Backup Function
Supports UPS operation with a transfer time of up to 10 ms, helping connected devices maintain power during brief mains power interruptions.

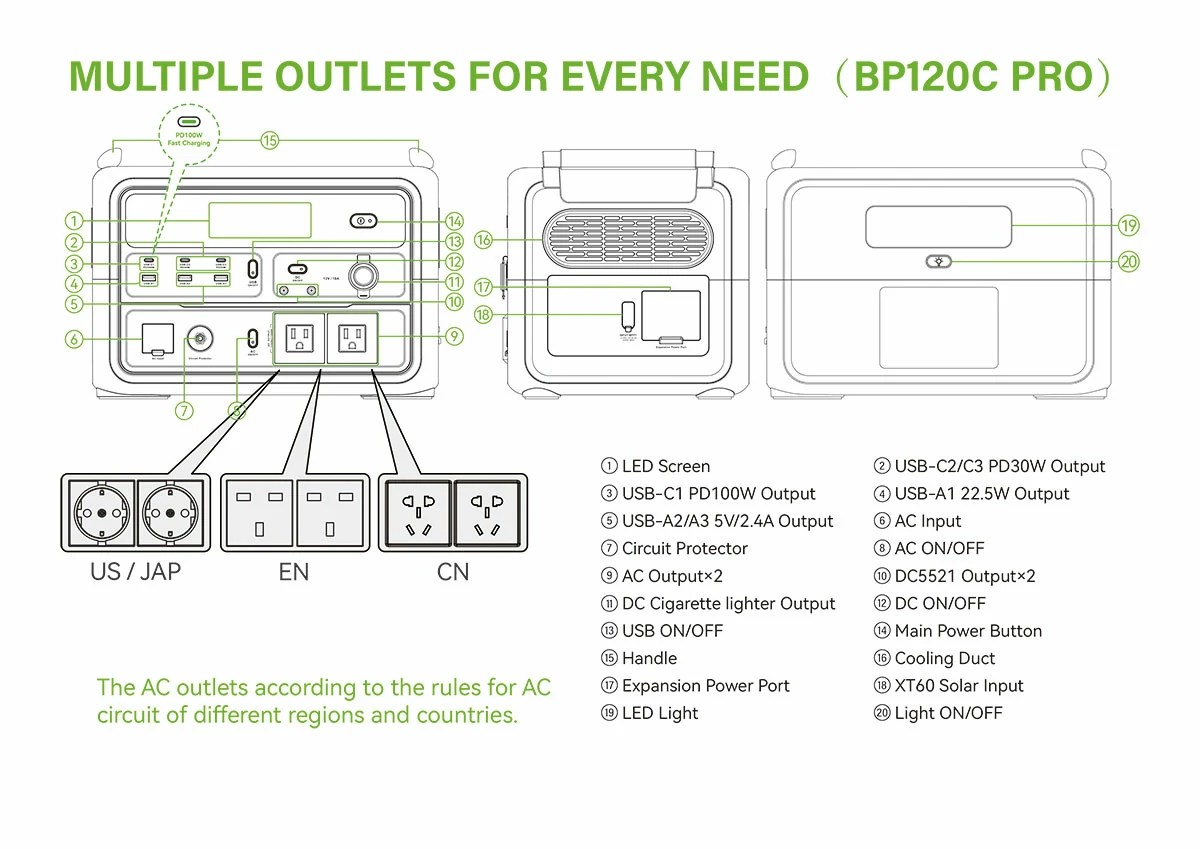

Multiple Outputs for Portable Devices
Power and charge multiple devices through AC, USB-C, USB-A and DC outputs. A 100W USB-C PD port supports high-power USB-C devices, while additional USB and DC connections provide flexibility for different outdoor and backup-power setups.
BP120C vs BP120C Pro
| Feature | BP120C | BP120C Pro |
| Rated Output | 1200W | 1200W |
| Capacity | 1008Wh | 1008Wh |
| Battery Type | LiFePO4 | LiFePO4 |
| Pure Sine Wave | Yes | Yes |
| Solar Input | Up to 400W | Up to 400W |
| Expansion Power Port | No | Yes |
| Extra Battery Support | No | Yes |
Choose the BP120C for a standalone 1008Wh portable power solution, or select the BP120C Pro when expandable battery capacity is required.
Expandable Capacity with BP120C Pro
BP120C Pro features an expansion battery port, allowing the 1008Wh main unit to connect with additional battery modules.
It supports up to two 1008Wh expansion batteries at the same time , increasing the total system capacity to 3024Wh for longer runtime during camping, backup power, and other extended-use applications.
Application
Camping & Outdoor Living
Power lighting, portable appliances and electronic devices during camping and outdoor stays.
Vehicle-Based Outdoor Use
A portable power solution for road trips, car camping and other vehicle-based outdoor activities.
Emergency Backup Power
Keep essential devices powered during temporary outages or unexpected interruptions.
APP / IoT
Optional App Control
Optional Wi-Fi and Bluetooth connectivity enables compatible versions to connect with the mobile app for remote operating-status monitoring and control.
Technical Specifications
Battery
| Specification | BP120C / BP120C Pro |
| Capacity | 1008Wh |
| Battery Type | LiFePO4 |
| Battery Configuration | 3P7S / 22.4V / 45Ah |
| Life Cycles | 2500+ cycles to 80% |
AC Output
| Specification | Value |
| Rated Output | 1200W |
| Surge Power | 2400W |
| Inverter | Pure Sine Wave |
| EU AC Output | 230V / 50Hz |
| US/JP AC Output | 120V / 60Hz |
Charging
| Specification | Value |
| AC Input | 800W Max |
| Solar Input | 400W Max |
| Solar Voltage | VOC 12–58V / 12A |
| Car Input | 12/24V / 12A |
| MPPT | Yes |
USB / DC
| Port | Output |
| USB-C1 | 100W Max |
| USB-C2 / C3 | 30W Max |
| USB-A1 | 22.5W |
| USB-A2 / A3 | 5V / 2.4A |
| Car Socket | 12V / 10A |
| DC5521 ×2 | 12V / 5A |
| Wireless Charging | 15W Max — Optional |
Physical
| Specification | Value |
| Dimensions | 351 × 253 × 260 mm |
| Weight | 12 kg / 26.46 lbs |
| Operating Temperature | -10°C to 40°C |
| Storage Temperature | -10°C to 45°C |
FAQ
Is the BP120C a LiFePO4 portable power station?
Yes. BP120C and BP120C Pro use a 1008Wh LiFePO4 battery and are rated for more than 2,500 cycles to 80% of original capacity.
What is the difference between BP120C and BP120C Pro?
The main difference is expandable capacity. BP120C operates as a standalone 1008Wh power station, while BP120C Pro includes an expansion power port for connecting an additional battery.
Can BP120C be charged with solar panels?
Yes. The BP120C platform supports MPPT solar charging with up to 400W solar input and an input range of VOC 12–58V.
How long does BP120C take to charge?
AC charging takes approximately 1.5 hours under the specified 800W input. With a 400W solar panel, charging takes approximately 2.5 hours under suitable conditions. Combined AC and solar charging can reduce charging time to approximately 1.3 hours.
Is BP120C suitable for camping?
Yes. Its 1200W output, 1008Wh battery capacity, multiple output ports and solar charging capability make it suitable for camping, road trips and vehicle-based outdoor power applications.
Looking for a different 1200W platform? The BP120B portable power station uses a different battery and MPPT architecture, offering another option for applications where portability and serviceability are key considerations.
