OEM & Ordering Information
- Product Code: BH0404A
- OEM Support: Worldwide plug compatibility and AC output standards, logo printing, color customization
- Sample: Available for evaluation upon request (paid sample)
- Payment: T/T, L/C, PayPal (for small orders)
- Supply Ability: 10000 units per month
Why Choose This Portable Power Station
High Output Power:
3600W / 3.6kVA AC output
Built-in Battery:
3864Wh LiFePO₄ battery
Solar Ready:
MPPT solar charging up to 5000W
Fast UPS Transfer:
10ms switching time
Multiple Charging Sources:
Grid, solar, battery, generator
Pure Sine Wave Output:
Safe for sensitive electronics
This high power portable power station is ideal for users who need reliable electricity during power outages.

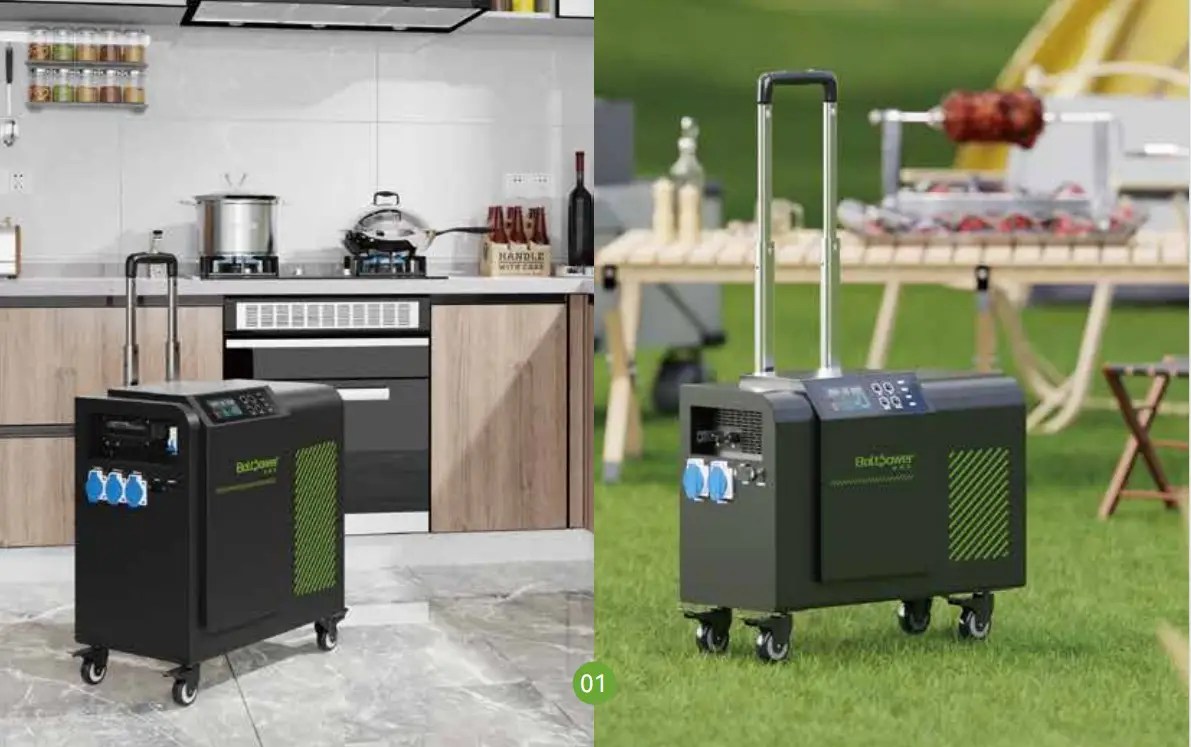

Portable Power Station for Home Backup
Designed for residential backup power, this portable power station provides stable electricity for essential household loads.
Rated Output Power:
3600W
Output Voltage:
208 / 220 / 230 / 240 VAC (Default 220V)
Output Frequency:
50Hz / 60Hz (Auto or Manual)
Waveform:
Pure sine wave
Voltage Regulation:
±5%
It can support appliances, lighting, home office equipment, and other critical devices during grid failures.
Solar Charging Portable Power Station
This solar portable power station features advanced MPPT technology for efficient solar energy utilization.
Maximum Solar Input Power:
5000W
MPPT Voltage Range:
40–450VDC
Maximum PV Voltage:
500VDC
MPPT Tracking Efficiency:
up to 99.5%
Maximum Solar Charging Current:
100A
High-voltage solar input enables efficient charging from residential solar panel systems.
Built-in LiFePO₄ Battery System
The BoltPower BH0404A-230V is a LiFePO₄ portable power station designed for safety and long service life.
Battery Capacity:
150Ah / 3864Wh
Battery Configuration:
1P8S
Operating Voltage Range:
22–28.8V
Charge / Discharge Rate:
1C
LiFePO₄ battery chemistry provides enhanced thermal stability and long-term reliability.
Grid and Generator Charging Support
This portable power station supports flexible charging from multiple sources.
Nominal AC Input Voltage:
220VAC
Input Voltage Range:
90–280VAC (Adjustable)
Input Frequency:
50Hz / 60Hz
Maximum Input Current:
20A
Operating Modes:
UPS Mode, Appliance Mode, Generator Mode
It automatically adapts to unstable grid or generator input.
Fast UPS-Level Transfer Time
Transfer Time (Line to Battery):
UPS Mode: 10ms (typical) Appliance Mode: 10ms Generator Mode: 60ms
This ensures uninterrupted power for computers and other sensitive electronics.
Design, Display, and Installation
LCD Display:
Shows input/output status, load percentage, battery status, and inverter temperature
Control Buttons:
ESC / UP / DOWN / ENTER
Dimensions:
515.54 × 486.45 × 316.47 mm
Cooling Method:
Forced air cooling
Installation:
Floor-standing with built-in wheels and brake
Operating Altitude:
up to 4000m
Certifications and Compliance
Transportation:
UN38.3
Safety:
IEC 62368-1 / UL 2743 (optional)
EMC:
EN55032 Class B / FCC Part 15 (optional)
About BoltPower
BoltPower is a professional manufacturer of portable power stations, solar energy storage systems, and lithium battery solutions , serving global residential and energy markets.
