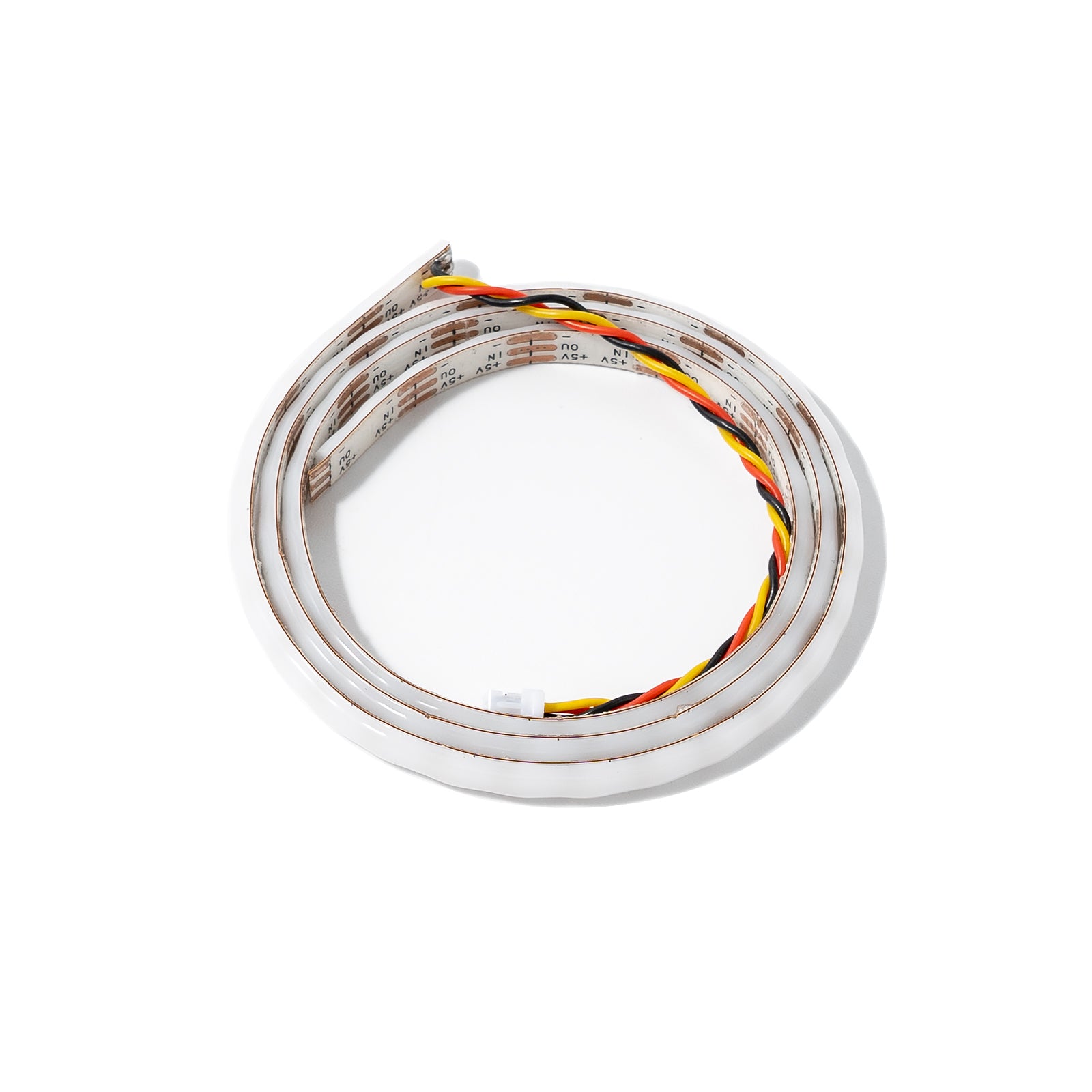

NightFire RGB LED Strip

Elevate your nighttime flying with the NightFire RGB LED Strip-the same premium lighting featured in the Pavo20 Pro NightFire Limited Edition. Designed for enhanced visibility and style, it features vibrant RGB LEDs that bring your whoop to life with a stunning spectrum of colors and dynamic display modes. Easily switch between 10 preset lighting effects and 7 colors by pressing the buttons. The NightFire RGB LED Strip is built to shine brilliantly against the night sky. Light up your flight path like never before.

Specifications

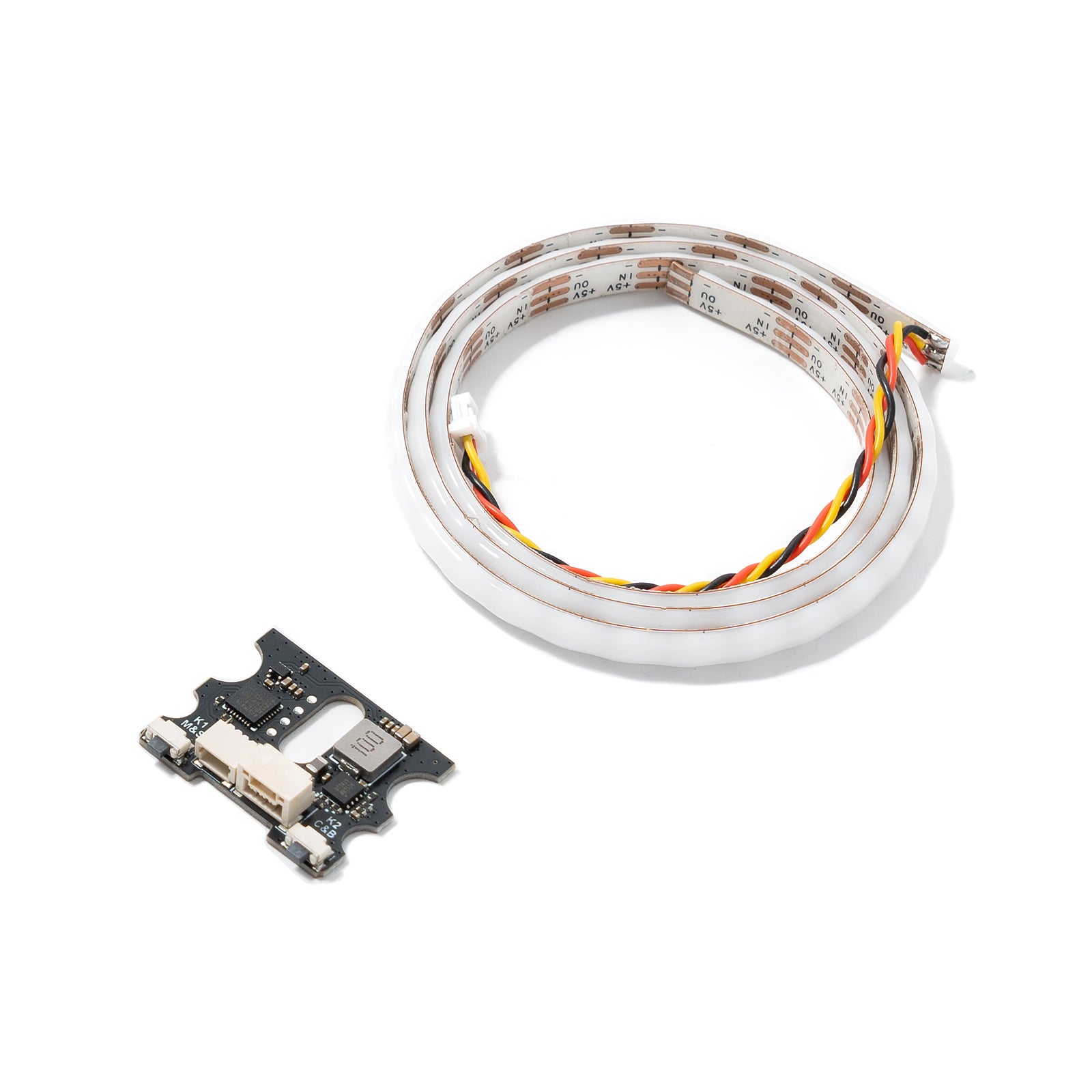

RGB Controller

• Input Voltage: 6V-18V (2S-4S)
• Output Voltage: 5V
• Output Current: 3A
• Beads: WS2812B RGB colorful LED
• Bead Count: Max. 128
• Input Connector: GH1.25mm 3-Pin
• Input/Output Connector: SH1.0mm 3-Pin

Diagram

RGB Controller Instructions

KEY1	Long Press	Switch Mode	10 modes: Betaflight Mode Solid Color Mode Single Color Breathing Mode Single Color Marquee Mode Double-Sided Marquee Mode Single Color Oriented Mode Single Color Growth Mode Rainbow Breathing Mode Rainbow Gradient Mode Double-Sided Rainbow Mode
	Short Press	Switch Speed	Fast, Medium, Slow
KEY2	Long Press	Switch Brightness	100%, 75%, 50%, 25%
	Short Press	Switch Color	White, Red, Yellow, Blue, Green, Cyan, Magenta, Off

Recommended

Quadcopter: Pavo20 Pro II, Pavo20 Pro, Pavo Pico II

Package

NightFire RGB LED Strip (LED Strip Version)

• 1 * RGB LED Strip (500mm)
• 1 * 3-Pin Cable

Specifications

• MOQ: 1000 pcs
