OEM & Ordering Information
- Product Code: BP030B
- OEM Support: Worldwide plug compatibility and AC output standards, logo printing, color customization
- Sample: Available for evaluation upon request (paid sample)
- Payment: T/T, L/C, PayPal (for small orders)
- Supply Ability: 50000 units per month
The BoltPower BP030B is a compact 300W portable power station powered by a 230.4Wh LiFePO4 battery , with 600W surge output and multiple AC, USB and DC ports.
Designed for outdoor activities, travel, mobile charging and light emergency backup, the BP030B combines portable size with flexible AC, solar and vehicle charging options.
Available in different regional AC configurations for international markets.
OEM/ODM Available · MOQ 200 Units
Key Features
230.4Wh LiFePO4 Battery
Built with a 230.4Wh LiFePO4 battery rated for 2,500+ cycles to 80% original capacity for repeated portable power use.
300W Portable AC Power
Provides 300W rated AC output with up to 600W surge power for compatible low-power electronics and equipment.
Multiple Output Ports
AC, USB-A, USB-C and DC outputs allow multiple types of portable electronics to be powered or charged from one compact unit.
Flexible Recharging
Recharge the BP030B from an AC outlet, compatible solar panel or vehicle power source, with combined AC + solar charging also supported.
Multiple Recharging Options
| Charging Method | Input | Approx. Recharge Time |
| AC Charging | 50W Max | ≈5 Hours |
| Solar Charging | 40W Max | ≈6 Hours |
| Car Charging | 12V / 24V | ≈6 Hours |
| AC + Solar | 90W Max | ≈2.5–2.7 Hours |
PV/DC Input: 11–28V, 2.5A, 40W Max
The BP030B supports pass-through charging , allowing compatible devices to receive power while the power station itself is being recharged.
Solar charging time varies depending on sunlight, panel orientation, ambient conditions and actual panel output.
What Can a 300W Power Station Run?
The 230.4Wh battery can support a range of low-power electronics for outdoor, travel and backup applications.
| Device | Estimated Usage |
| Smartphone | ≈13 Charges |
| Laptop | ≈2 Charges |
| Camera | ≈22 Charges |
| Wi-Fi Router | ≈15 Hours |
| LED Light | ≈67 Hours |
| Fan | ≈11 Hours |
| CPAP (40W) | ≈5 Hours |
| Projector (30–60W) | ≈3.3–6.7 Hours |
Actual runtime varies depending on device load, battery condition, conversion efficiency, temperature and operating environment.
Technical Specifications
| Specification | BP030B | |
| Battery | Battery Capacity | 230.4Wh |
| Battery Type | LiFePO4 | |
| Battery Configuration | 4S3P | |
| Pack Voltage | 12.8V | |
| Life Cycles | 2,500+ cycles to 80% original capacity | |
| Management System | BMS + MPPT Controller | |
| Output | Rated AC Output | 300W |
| Surge Power | 600W | |
| Inverter Type | Square Wave | |
| AC Version | 120V / 230V | |
| Output Frequency | 50/60Hz | |
| USB-C | 1 × 5V/3A, 15W | |
| USB-A | 3 × 5V/2.4A | |
| DC Output | 12V/10A DC5521 | |
| LED Light | 1W | |
| Wireless Charging | 15W Max, Optional | |
| Overload Protection | Supported | |
| Input | AC Input | 50W Max |
| PV/DC Input | 11–28V, 2.5A, 40W Max | |
| AC + Solar Input | 90W Max | |
| Car Input | 12V / 24V | |
| Pass-Through Charging | Supported | |
| General | Dimensions | 217 × 131 × 147mm |
| Weight | Approx. 3kg / 6.6lbs | |
| Operating Temperature | -10°C to 45°C | |
| MOQ | 200 Units |

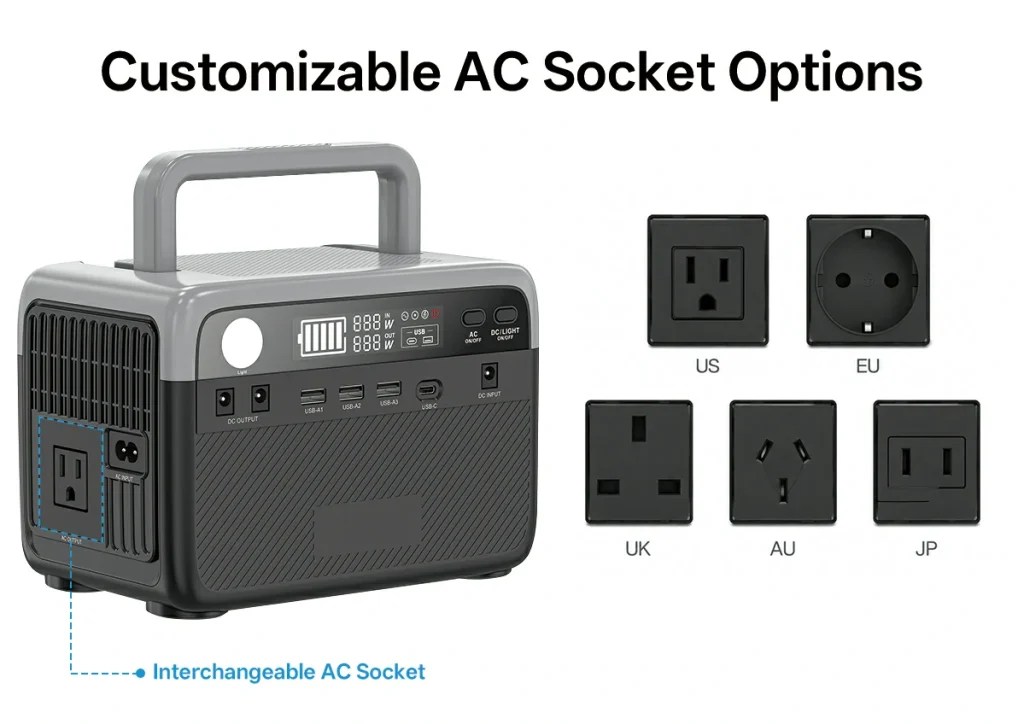

Built for Different Markets
The BP030B can be configured with different AC voltage and socket options for international distribution.
| Version | AC Output | Rated Power |
| 120V Version | 120V AC | 300W |
| 230V Version | 230V AC | 300W |
Regional socket options include:
US · JP · UK · FR · DE · KR · Other Markets
Standard regional AC socket changes can be supported without new housing tooling .
OEM & Private Label Options
BoltPower supports OEM and ODM projects for distributors, importers, wholesalers and private-label power solution brands.
Logo Custom branding and private-label logo.
Housing Color Custom housing color based on available configurations.
Product Labeling Model, specification and market-specific labels.
Retail Packaging Customized packaging artwork and brand presentation.
User Manual Localized single-language manuals for the target market.
Regional AC Socket Standard socket configurations for different markets without new housing tooling.
MOQ: 200 Units
Changes to USB, DC or other interface configurations may require housing modification and additional tooling.
Standard Package
Applications
Outdoor & Camping
Portable charging for phones, cameras, lighting, fans and other compatible electronics.
Travel & Road Trips
Compact 3kg design for vehicle storage and mobile charging.
Light Emergency Backup
Backup power for lighting, communication devices and low-power electronics during temporary outages.
Mobile Electronics
Multiple USB, DC and AC outputs for compatible portable devices.
FAQ
What is the rated output of the BP030B?
The BP030B provides 300W rated AC output with up to 600W surge power .
Can the BP030B be charged with a solar panel?
Yes. It supports 11–28V PV/DC input with up to 40W solar charging power .
Does the BP030B support pass-through charging?
Yes. Compatible devices can receive power while the BP030B itself is being recharged.
Is a pure sine wave version available?
Yes. For applications requiring pure sine wave AC output and faster USB charging , the BP030D is available with 60W USB-C PD and an 18W USB-A fast-charging port.
