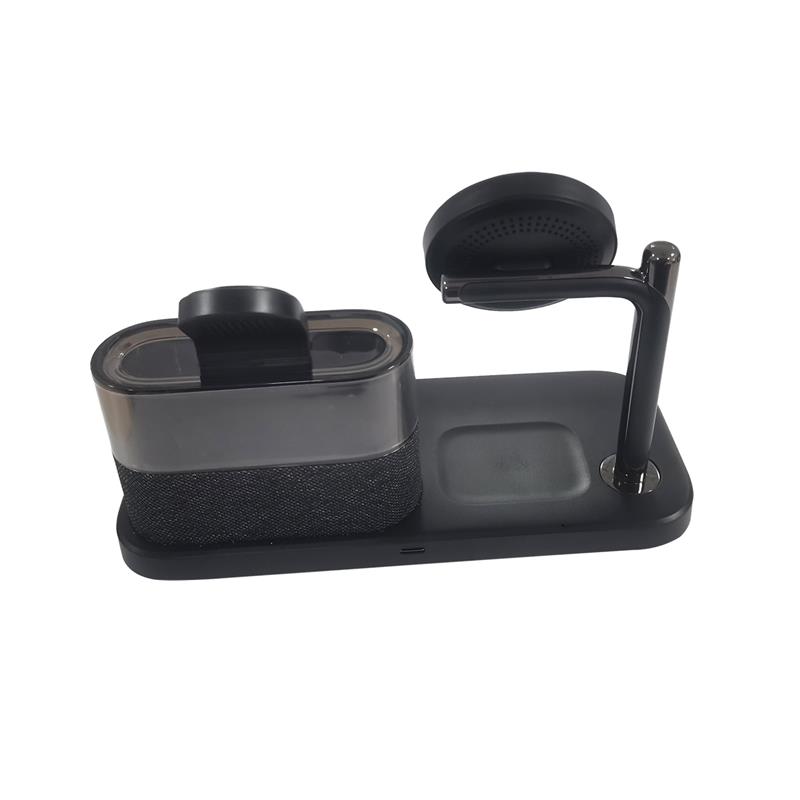

Model: EC09
5 in 1 Multifunction Magnetic Wireless Charger- Mobile Phone Charger – Wireless Charging Stand
Charge iphone, iwatch, airpod simultaneiously
Strong Magentic Suction
Dimmable LED light
Time and Alarm Display
| Item | Description | Parameter | Remark | |
| 2 | Technical Standard | WPC/Qi | ||
| 3 | Coil quantities | 1 Coil + 1 Coil+ 1Coil | ||
| 4 | Power Supply | 9V-3A/12V-2.5A/PD/QC3.0 | ||
| Wireless Output | 15W/10W/7.5W/5W wireless charging for mobiles | |||
| 1-3W wireless charging for Watch | ||||
| 5 | 5W wireless charging for Earbuds | |||
| Wireless charging range of application | QI standard receiving devices | |||
| 5 | iwatch wireless charging | |||
| 6 | Charging Type | Electro-magnetic induction | ||
| 7 | Charging Style | one to one in active area | ||
| 8 | Wireless charging active area | 25*25mm for mobile | ||
| 9 | Charging distance | 3-8mm | Distances is between RX coil and TX coil | |
| 10 | working frequency: | 110KHZ – 205KHZ | ||
| Power On | Red LED on | |||
| Standby indicator | Blue LED on | |||
| Charging for mobile only | Blue LED on | |||
| 11 | Charging protected for mobile only | blue and green LED flicker alternatively | ||
| 12 | Mobile charged full | Blue LED on | ||
| 13 | Conversion Rate for wireless charging | up to 80% | ||
| 14 | over voltage protection | 13.7±0.2V | ||
| 15 | FOD function | support | ||
| 16 | Operating temperature and humidity | –10℃ ～ 45℃ | ||
| 17 | Storage temperature and humidity | –20℃ ～ 70℃ | ||
| 18 | Product Size | L*W*H=203*93*130mm | ||
| 19 | Net Weight | 376 g | ||
| 20 | Accessories | User Manual、USB-C Cable | ||
Technical Parameter

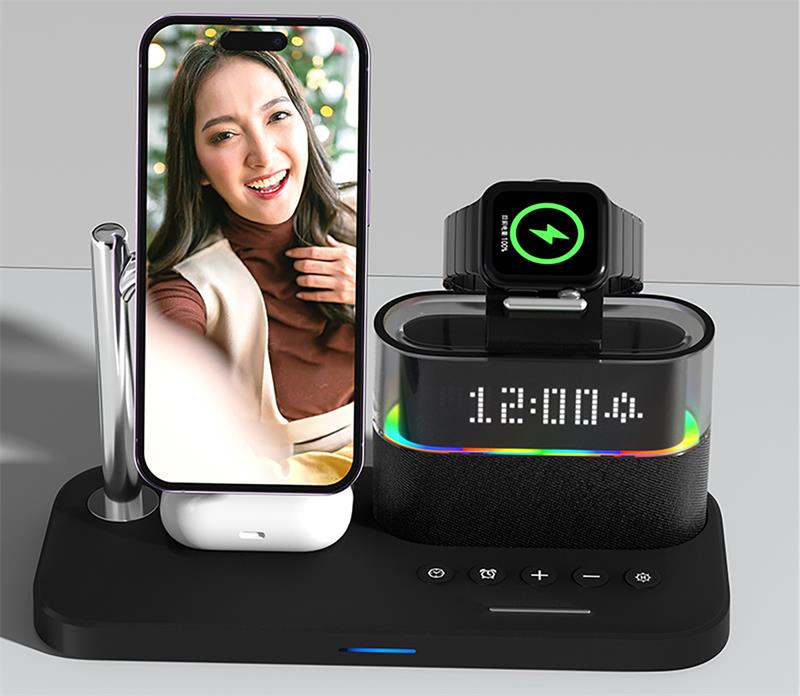

Charge iphone, iwatch, airpod simultaneously
Strong Magnetic Suction
Dimmable LED light & Time, Alarm Display
Certificate
