V22S

V22S 2 in 1 Vacuum Cleaner &Blower Manual

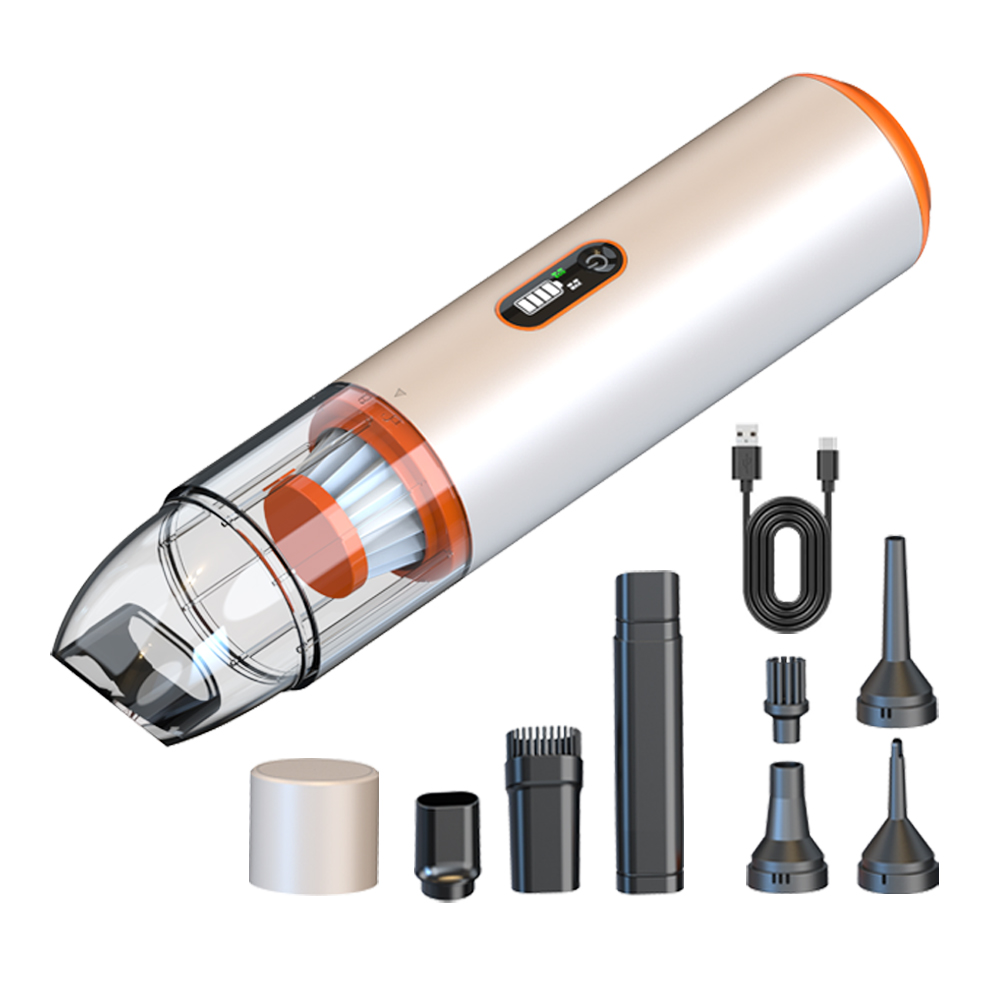

I.Introduction of main parts:

1. Vacuum pumping nozzle (Can be used to vacuum storage bags)

2. Long vacuum nozzle (Used to extend the brush head to clean out-of-reach areas)

3. Brush nozzle(With a brush for dust collection after cleaning)

4. Dust collection cup

5. LED display（display battery percentage/vacuum level）

6. Switch/function buttons：Long press for 2 seconds to start and enter the first gear ,short press again to enter the second gear, then press to turn off.

7. TYPE-C charging port

8. Cover

9. Pressurized air nozzle(Can be used for inflating swim ring)

10. Long blowing nozzle(Can be used for outdoor, car seat cushion dust blowing)

11. Air cushion inflation nozzle(Can be used for inflating outdoor mattresses)

12. Brush blowing nozzle(Can be used for keyboard cleaning)

Installation diagram ：

Dust cup installation

Extended nozzle installation

Vacuum pumping nozzle operation

Blowing nozzles installation

II. Precautions before operation:

* Before use, please confirm whether all parts are assembled in place, especially pay attention to the filter assembly in the dust box.

*Please fully charge this device for the first use or if it has been left unused for too long. the fully charged indicator light will change from red to blue, and a blue light always on after full charged.

* Note that it cannot be turned on during charging. It can not use unless the power is cut off.

* This product is not waterproof. Please do not inhale a large amount of water or liquid to avoid damage, especially flammable and explosive substances such as chemical solvents or alcohol.

* Do not inhale high-heat substances (such as burning cigarette butts or hot ash) to avoid damaging the motor and causing foreign objects to form inside.

* If abnormal noise is found during use, it should be immediately stopped. Please contact the after-sales department for confirmation and handling.

* Please place it in a cool place when not in use, and do not expose it to sunlight at a temperature exceeding 60℃ to avoid the risk of fire!

III. Instructions for use:

1. Vacuum/blowing function:

* Long press

button for 2 seconds to start blowing and vacuum function. It is equipped with different blowing nozzles and suction nozzles, which can be selected according to the different usage scenario. The wind speed is in two levels, and it runs in the first gear after turn on, press again to switch to the second gear, and then short press to turn off the motor and stop working.

2. LED display

* When charging, the battery icon displays the battery level at 25%, 50%, 75%, and 100%, with full charge displayed. When the product is working, the battery icon decreases by a ratio of 100%, 75%, 50%, and 25%. when the battery icon flashes, indicating that it needs to be recharged for use.

IV. Product charging:

* When the product is used for a long time and the LED display flashes, the product needs to be charged before it can continue to be used.

*Use a standard TYPE-C interface plug, an adapter larger than 5/2A needs to be selected to charge the product.

*The battery icon on the display screen lights up at a ratio of 25%, 50%, 75%, and 100% when charging. The fully charged battery icon is fully illuminated.

*The machine that has just completed the work needs to be turned off and left to cool down for about 10 minutes before it can be charged.

V. Trouble and shooting:

Fault cause

Possible causes

countermeasure

No power, no operation

* Battery is too low

* Press the wrong buttons

* Being charged

*Timely charging

*Correct Press Again

*Stop charging

Low dust blowing force

*Use the low gear

*The selected nozzle model does not match

*The nozzle is blocked

*Check for corrections

*Instant cleaning

Abnormal noise

*Foreign object blocking at the suction nozzle

*Filter missing

* Check and clean it

* Install filter

VI. Technical Parameter:

Product name

2 in 1 Vacuum cleaner &blower

Product model

V22S

Suction

First gear about 8KPa/ second gear about 11KPa

Working time

First gear about 24min, second gear about 13 min

Battery capacity

2000mAh*2 5C

Motor rated power

About 60W ±5%

Rated voltage

7.4V

RPM

62000R/M ±10%

Blowing accessories

4 types

Blowing mode

2 levels

Charging time

About 2.5H

Charging mode

5V/2A

Interface type

TYPE-C

Net weight

About 372g<span lang="EN-US" style="font-size:6.5pt;font-family:"微软雅黑",s
