OEM & Ordering Information
- Product Code: BP030D
- OEM Support: Worldwide plug compatibility and AC output standards, logo printing, color customization
- Sample: Available for evaluation upon request (paid sample)
- Payment: T/T, L/C, PayPal (for small orders)
- Supply Ability: 5000 units per month

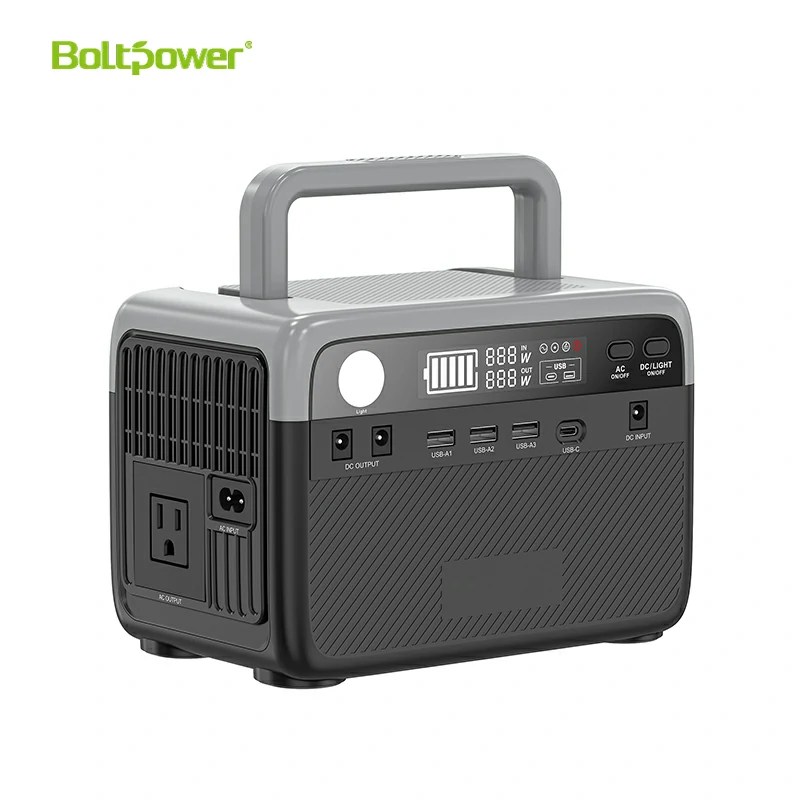

The BoltPower BP030D is a compact 300W portable power station built with a 230.4Wh LiFePO4 battery , 600W surge output and pure sine wave inverter .
With 60W USB-C PD fast charging, multiple AC/DC outputs and flexible AC, solar and vehicle recharging options, it is designed for portable power, emergency backup, outdoor use and mobile applications.Available in 120V and 230V versions with multiple regional AC socket options for global distribution.
Key Features
Pure Sine Wave Output
Provides 300W continuous AC output with up to 600W surge power . The pure sine wave inverter delivers stable AC power for compatible electronics and low-power equipment.
Long-Life LiFePO4 Battery
The 230.4Wh LiFePO4 battery is rated for 2,500+ cycles to 80% original capacity , making it suitable for repeated daily and portable use.
60W USB-C PD Fast Charging
The USB-C PD port delivers up to 60W , supporting compatible laptops, tablets, smartphones, cameras and other USB-C devices.
Flexible Recharging
Recharge from an AC outlet, compatible solar panel or vehicle power source. AC and solar input can also be combined for faster charging.
Multiple Recharging Options
| Charging Method | Input | Approx. Recharge Time |
| AC Charging | 50W Max | ≈5 Hours |
| Solar Charging | 40W Max | ≈6 Hours |
| Car Charging | 12V / 24V | ≈6 Hours |
| AC + Solar | 90W Max | ≈2.5–2.7 Hours |
PV/DC Input: 11–28V, 2.5A, 40W Max
The BP030D also supports pass-through charging , allowing compatible devices to receive power while the power station itself is being recharged.
Solar charging time varies according to sunlight intensity, panel orientation, ambient conditions and actual panel output.
What Can a 300W Power Station Run?
With 300W rated AC output and a 230.4Wh battery, the BP030D can support a variety of low-power electronics.
| Device | Estimated Usage |
| Smartphone | ≈13 Charges |
| Laptop | ≈2 Charges |
| Camera | ≈22 Charges |
| Wi-Fi Router | ≈15 Hours |
| LED Light | ≈67 Hours |
| Fan | ≈11 Hours |
| CPAP (40W) | ≈5 Hours |
| Projector (30–60W) | ≈3.3–6.7 Hours |
Actual runtime depends on device load, battery condition, conversion efficiency, temperature and operating environment.
For appliances with motors, compressors or high startup current, confirm the required surge power before use.
Technical Specifications
| Battery | Specification | BP030D |
| Battery Capacity | 230.4Wh | |
| Battery Type | LiFePO4 | |
| Battery Configuration | 4S3P | |
| Pack Voltage | 12.8V | |
| Life Cycles | 2,500+ cycles to 80% original capacity | |
| Management System | BMS + MPPT Controller | |
| Output | Rated AC Output | 300W |
| Surge Power | 600W | |
| Inverter Type | Pure Sine Wave | |
| AC Version | 120V / 230V | |
| Output Frequency | 50/60Hz | |
| USB-C | 1 × PD 60W | |
| USB-A | 2 × 5V/2.4A + 1 × 18W | |
| DC Output | 12V/10A DC5521 | |
| LED Light | 1W | |
| Wireless Charging | 15W Max, Optional | |
| Overload Protection | Supported | |
| Input | AC Input | 50W Max |
| PV/DC Input | 11–28V, 2.5A, 40W Max | |
| AC + Solar Input | 90W Max | |
| Car Input | 12V / 24V | |
| Pass-Through Charging | Supported | |
| General | Dimensions | 217 × 131 × 147mm |
| Weight | Approx. 3kg / 6.6lbs | |
| Operating Temperature | -10°C to 45°C | |
| MOQ | 200 Units |
Built for Different Markets
The BP030D is available in different voltage and AC socket configurations for international markets.
| Version | AC Output | Rated Power | Waveform |
| 120V Version | 120V AC | 300W | Pure Sine Wave |
| 230V Version | 230V AC | 300W | Pure Sine Wave |

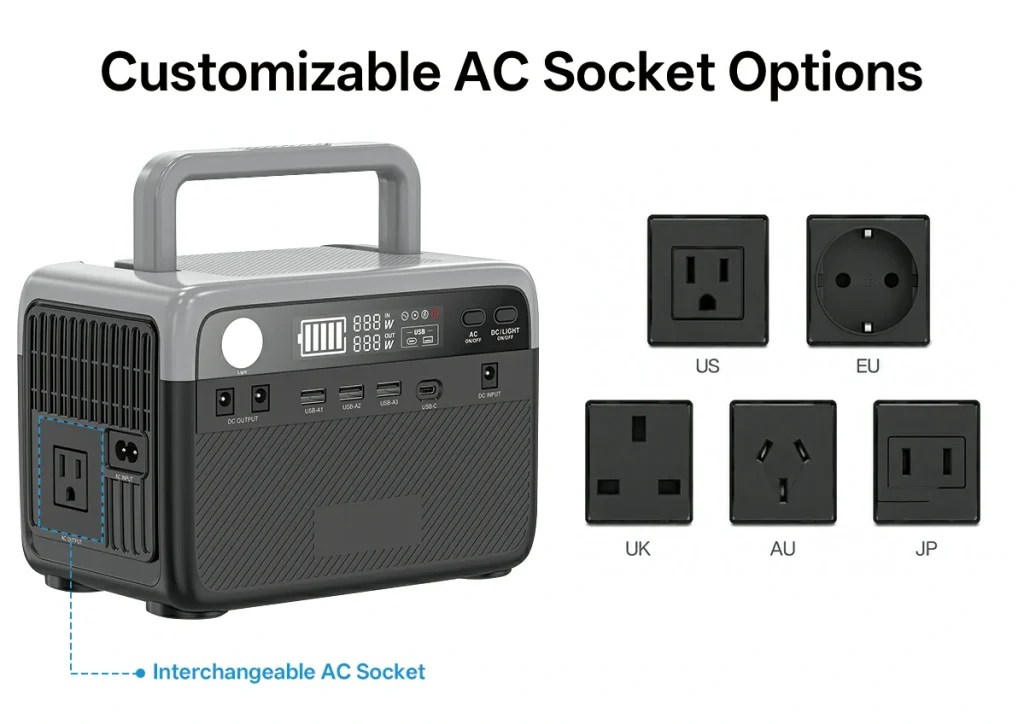

Regional AC socket options include:
US · JP · UK · FR · DE · KR · Other Markets
Standard regional AC socket changes can be supported without new housing tooling , making the BP030D suitable for distributors and private-label brands serving multiple markets.
OEM & Private Label Options
BoltPower supports OEM and ODM projects for distributors, importers, wholesalers and power solution brands.
Logo
Custom brand logo and private-label identification.
Housing Color
Existing housing can be produced in different color configurations.
Product Labeling
Customize model labels, specification labels and market-specific information.
Retail Packaging
Custom packaging artwork and brand presentation.
User Manual
Single-language manuals are supplied as standard and can be adapted to the target market.
Regional AC Socket
Different standard AC socket configurations can be supplied without new housing tooling.
MOQ: 200 Units
Changes to USB, DC or other interface configurations outside the standard design may require housing modification and additional tooling.
Standard Package
Each standard BP030D package includes:
Packaging, labeling and documentation can be customized for OEM and private-label projects.
Applications
Outdoor & Camping
Portable power for phones, cameras, lighting, laptops, fans and other low-power equipment.
Emergency Backup
Keep essential communication, lighting and electronic devices powered during temporary outages.
Road Trips
Compact 3kg design for vehicle storage and mobile charging.
Mobile Work
60W USB-C PD output supports compatible laptops, tablets and field electronics.
Temporary Events
Portable AC and DC power for booths, displays and temporary setups where fixed power may not be convenient.
FAQ
What is the difference between BP030D and BP030B ?
Both models offer 300W rated output, 600W surge power and a 230.4Wh LiFePO4 battery. BP030D upgrades the AC output to a pure sine wave inverter and adds 60W USB-C PD and an 18W USB-A fast-charging port, making it better suited to customers who require faster device charging and pure sine wave AC output.
Is the BP030D a pure sine wave portable power station?
Yes. The BP030D provides pure sine wave AC output with 300W rated power and up to 600W surge power.
Can the BP030D be charged by solar panel?
Yes. It supports 11–28V PV/DC input with a maximum solar charging input of 40W.
Does it support pass-through charging?
Yes. Compatible devices can receive power while the BP030D itself is being recharged.
Which AC socket versions are available?
Standard socket options are available for markets including the US, Japan, UK, France, Germany and South Korea. Standard socket changes do not require new housing tooling.
What can be customized for OEM orders?
Logo, housing color, product labeling, retail packaging, user manual and regional AC socket configuration can all be customized. MOQ is 200 units.
