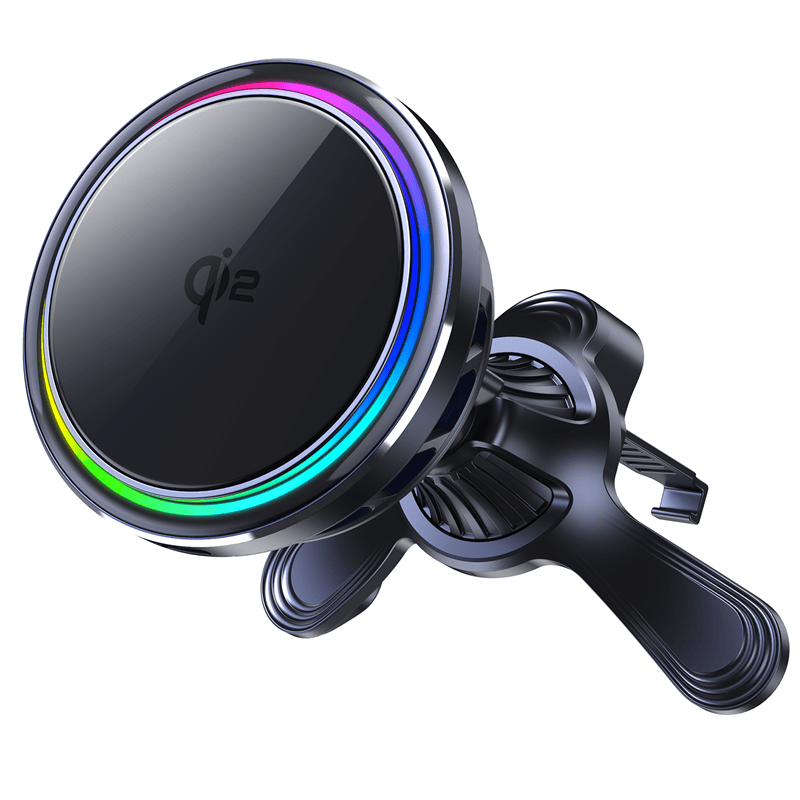

Model: ES21
Qi2.2 25W wireless charging
Magnetic Wireless Car Charger – Wireless charging car mount – In-car Charger

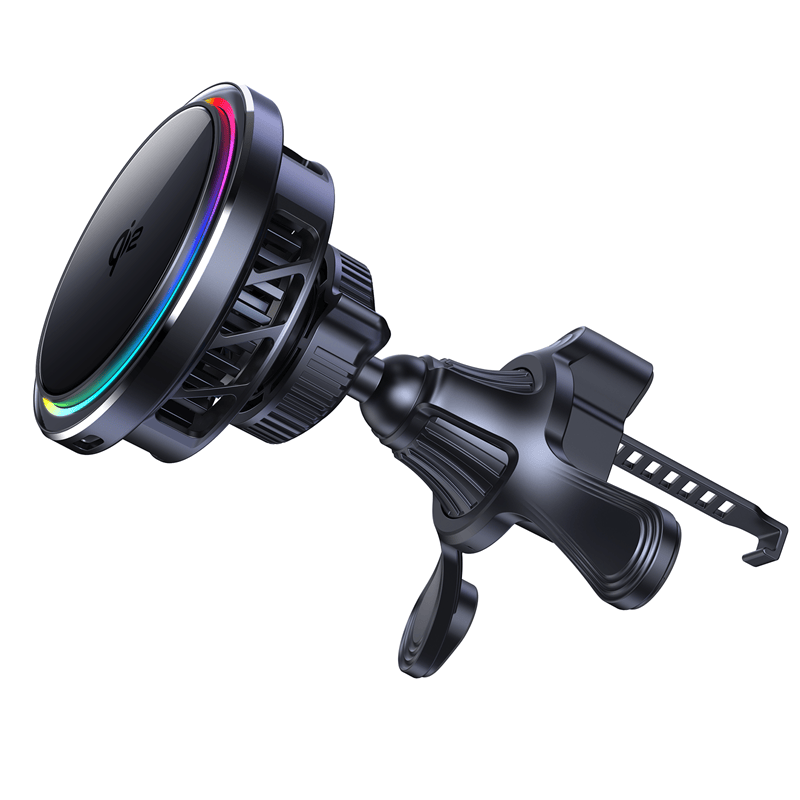

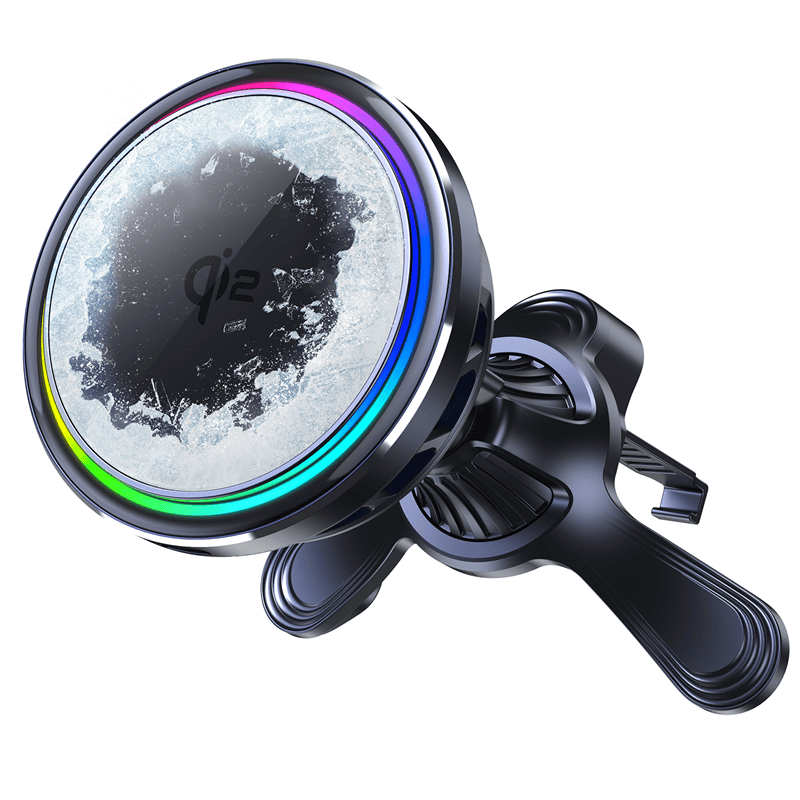

Semiconductor refrigeration + fan cooling
Strong Megnetic Suction

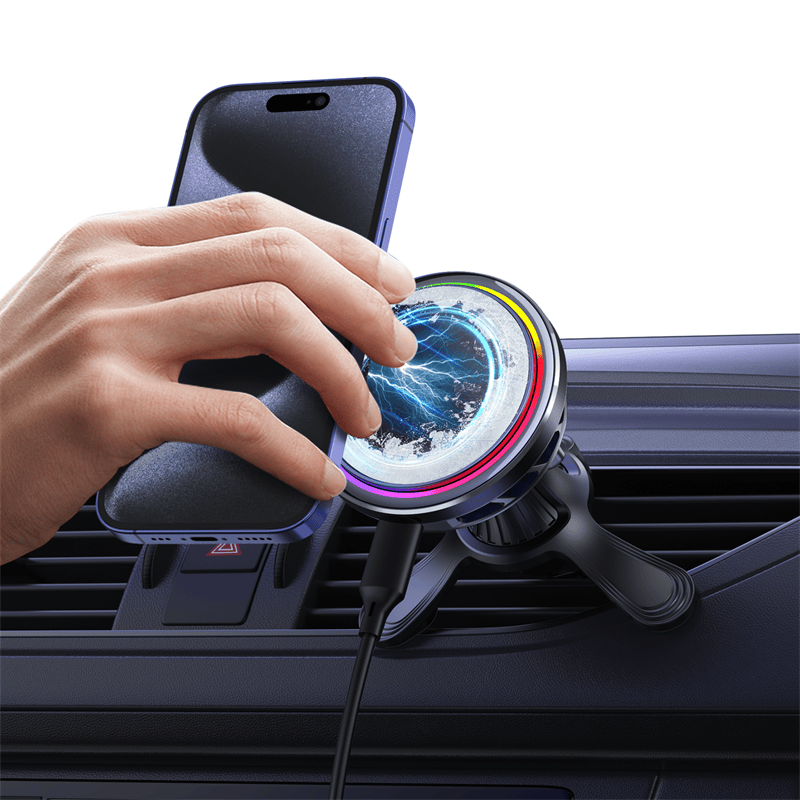

Easy Installation: Air vent clip or hook, Dash mount or Window mount options
| Technical Parameter | ||||
|---|---|---|---|---|
| Item | Description | Parameter | Remark | |
| 1 | Technical Standard | WPC/Qi | Qi 2.2 | |
| 2 | Coil quantities | 1 Coil | ||
| 3 | Power Supply | 9V-3A/12V-2.5A/15V-3A/PD/QC3.0 | ||
| 4 | Wireless Output | 25W/15W/10W/7.5W/5W wireless charging for mobiles | ||
| 5 | Wireless charging range of application | QI standard receiving devices | ||
| 6 | Charging Type | Electro-magnetic induction | ||
| 7 | Charging Style | one to one in active area | ||
| 8 | Wireless charging active area | 25*25mm for mobile | ||
| 9 | Charging distance | 2-6mm | Distances is between RX coil and TX coil | |
| 10 | working frequency: | 110-205Khz, 127K/360KHz, 325KHz | ||
| 11 | Power On | Blue LED on | No indicator for Watch charged | |
| Charging for mobile only | blue LED on | |||
| 12 | Mobile charged full | led off | ||
| 13 | Conversion Rate for wireless charging | up to 80% | ||
| 14 | FOD function | support | red led flicker | |
| 15 | Operating temperature and humidity | –10℃ ～ 45℃ | ||
| 16 | Storage temperature and humidity | –20℃ ～ 70℃ | ||
| 17 | Product Size | Φ67.5*26 mm | ||
| 18 | Net Weight | About 115g | ||
| 19 | Accessories | User Manual、USB-C Cable | ||
Semi-conductor refrigeration + fan cooling
RGB LED light
Air vent clip/hook, Dash mount or Window mount installation
