Model: EC810C
Qi2 ID: 21141
Magnetic Wireless Car Charger – Wireless charging car mount – In-car Charger
Strong Megnetic Suction
15W fast charging
Options: Air vent style, Dash mount style, Window mount style
Easy Installation
Technical Parameter
| Item | Description | Parameter | Remark | |
|---|---|---|---|---|
| 1 | Technical Standard | WPC/Qi | Qi2.0 MPP | |
| 2 | Coil quantities | 1 Coil | WPC A11 Coil | |
| 3 | Power Supply | 9V-2.22A/PD/QC3.0 | ||
| 4 | Wireless Output | 15W/10W/7.5W/5W wireless charging for mobiles | Max 15W for Magnetic iPhone and Qi standard | |
| 5 | Wireless charging range of application | QI standard receiving devices | ||
| 6 | Charging Type | Electro-magnetic induction | ||
| 7 | Charging Style | one to one in active area | ||
| 8 | Wireless charging active area | 25*25mm for mobile | ||
| 9 | Charging distance | 3-6 mm | Distances is between RX coil and TX coil | |
| 10 | working frequency: | 110KHZ – 205KHZ， 127KHZ or 360KHZ for iphone | 7.5W for 127KHZ, 15W for 360KHZ | |
| 11 | Standby indicator | Blue led Indicator off | ||
| Charging for mobile only | Blue led I Indicator always on | |||
| Charging protected for mobile only | Blue led Indicator flash fast | |||
| Mobile charged full | phone Indicator always on | |||
| 12 | Conversion Rate for wireless charging | up to 80% | ||
| 13 | over voltage protection | 13±0.3V | ||
| 14 | over load protection | 22W | ||
| 15 | FOD function | support | ||
| 16 | Operating temperature and humidity | –10℃ ～ 45℃ | ||
| 17 | Storage temperature and humidity | –20℃ ～ 70℃ | ||
| 18 | Product Size | Φ*T= 60×30 mm | ||
| 19 | Net Weight | TBA | ||
| 20 | Accessories | User Manual、USB-C Cable | ||
Air vent version

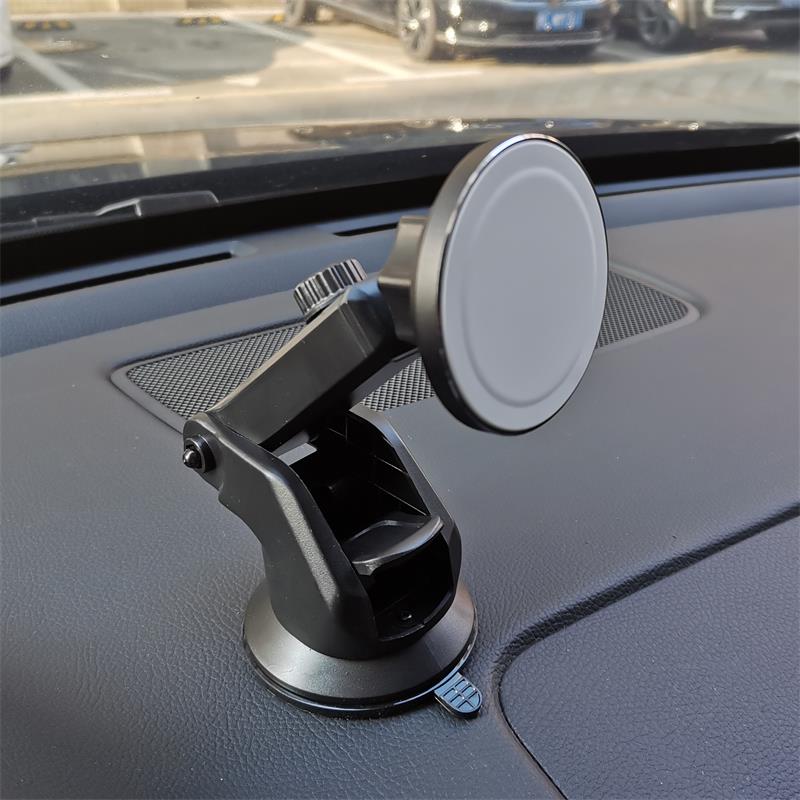

Dash mount version
Window mount version
Strong magnetic suction – 360 degree rotation
Certificate
